FRA822
Project
Aero Road Frame
Model
FRA822
Category
Cycling, Road, FramesAbout
Designed from scratch. Built around the ANI (All-Neatly-Integrated) cockpit system, which gives you the flexibility to build your cockpit to your preferences. Aero elements are found throughout the frame. A complete and integrated look with a maximized performance within the UCI regulations.
Specs
- 1300g (frameset – size M)
- ANI cockpit
- BB86
- Flat-mount Disc Brake
- Thru-axle – 142×12 / 100×12
- 700c * 32c
- FD Braze-on
- Chainrings up to 56T
ANI-cockpit

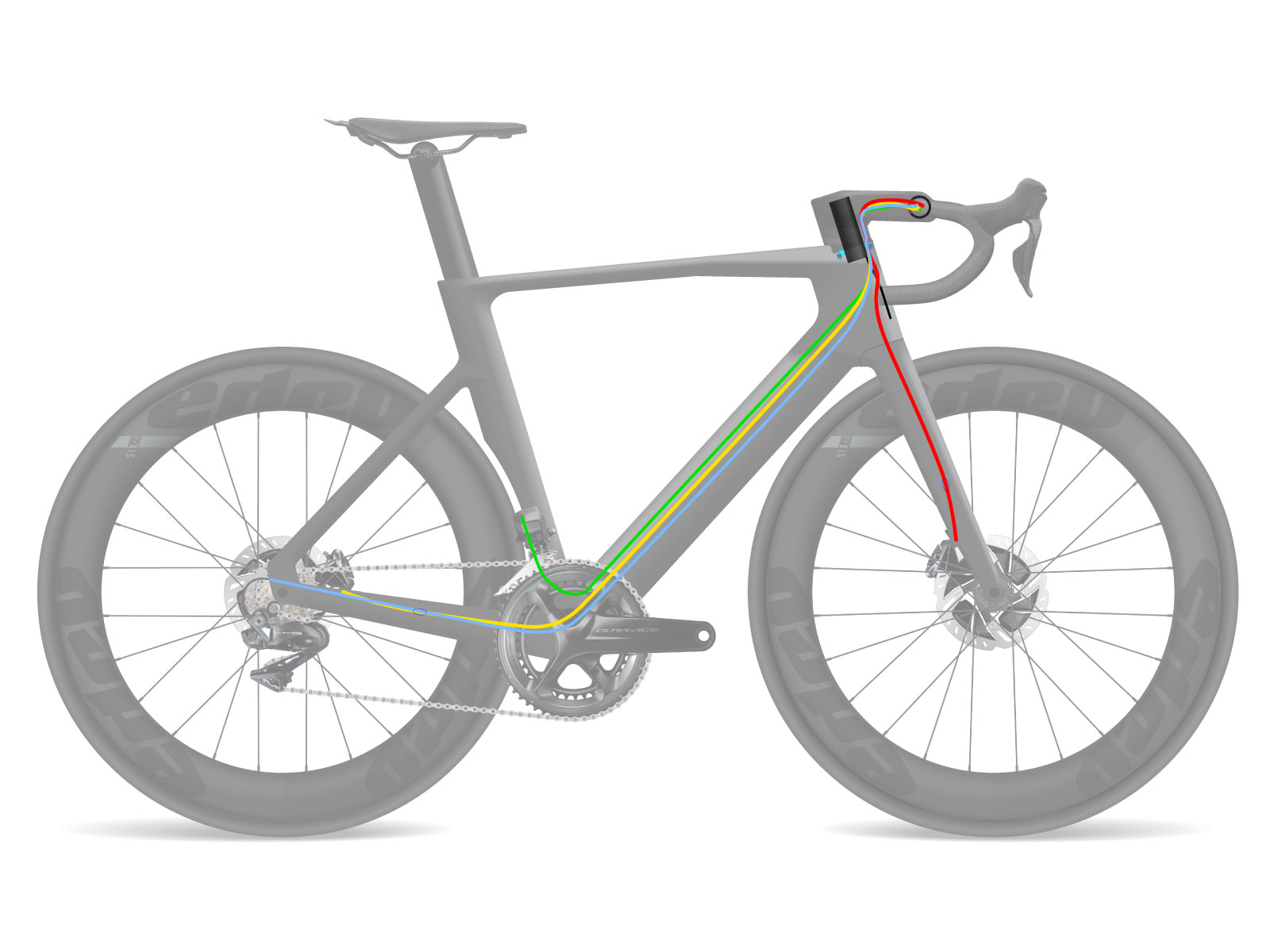

100% Flexibility is priority. To address the ongoing discussion about integrated cockpits and internal cable routing, FTC developed ANI-1, -2 and -3. Pick your preferred system with the frame. You even have the option to offer swap-kits to the end-user to go more or less integrated.
ANI-1
- FTC carbon stem
- + FTC carbon handlebar
- = Full internal routing
ANI-2
- FTC carbon stem
- + Any type of handlebar (ø31.8)
- = Semi-internal routing; external from handlebar to (aero) top cap.
ANI-3
- Any stem
- + any type of handlebar (ø31.8)
- = Semi-internal routing; external from handlebar to (aero) top cap.
